Faac 390 24Vdc articulated arm kit for swing gates up to 1.8m

Faac 390 24Vdc articulated arm kit for swing gates up to 1.8m

Electromechanical operator with articulated arm for residential swing leaf gates with single leaf lengths of 1.8m. Kit available in double or single option.

The system has non-reversing motors that hold the gate in the open and closed positions. Maximum anti-crushing safety thanks to the exclusive control board. The 24v version of this kit has a virtual encoder with in-built obstacle detection. If somebody comes into contact with the gate while it's in motion it will stop and back off, or reverse. It also has the option of a battery backup which ensures the gates still operate if there's a power cut.

IMPORTANT: to ensure correct operation, make sure that the distance between the gate hinge and the gate pier edge is a maximum of 300mm.

This motor can also be used with a telescopic arm for bi-folding doors up to 1.5m maximum width of a single panel.

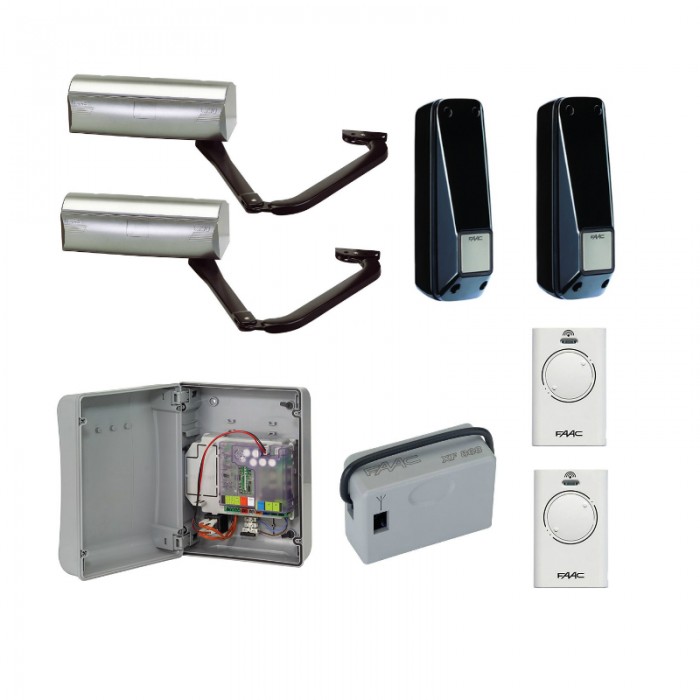

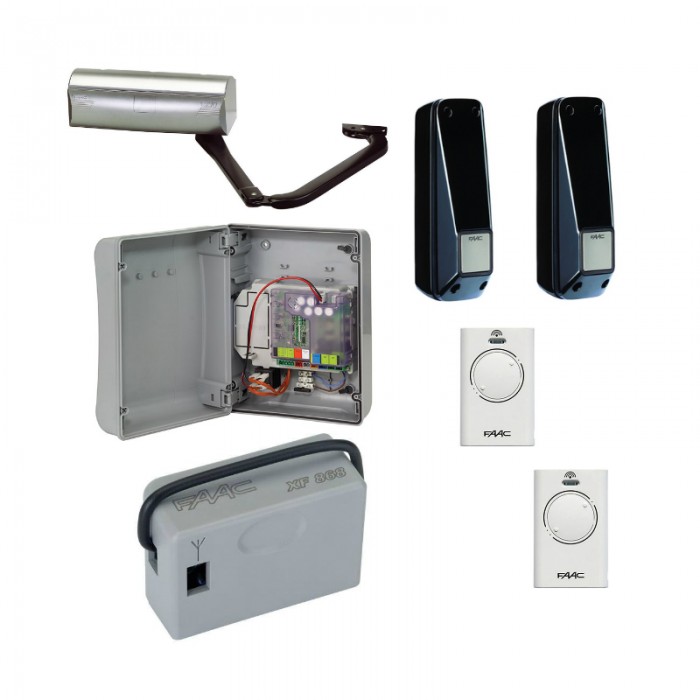

The kit contains:

  • 1 or 2 x 390 24Vdc Operator
  • 1 or 2 x Articulated arm
  • 1 x E024S Control board with housing

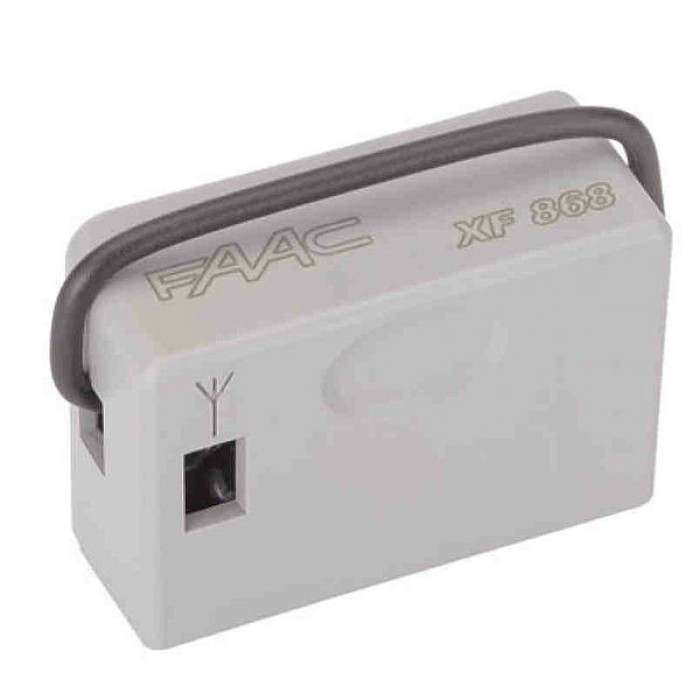

  • 1 x Receiver XF868

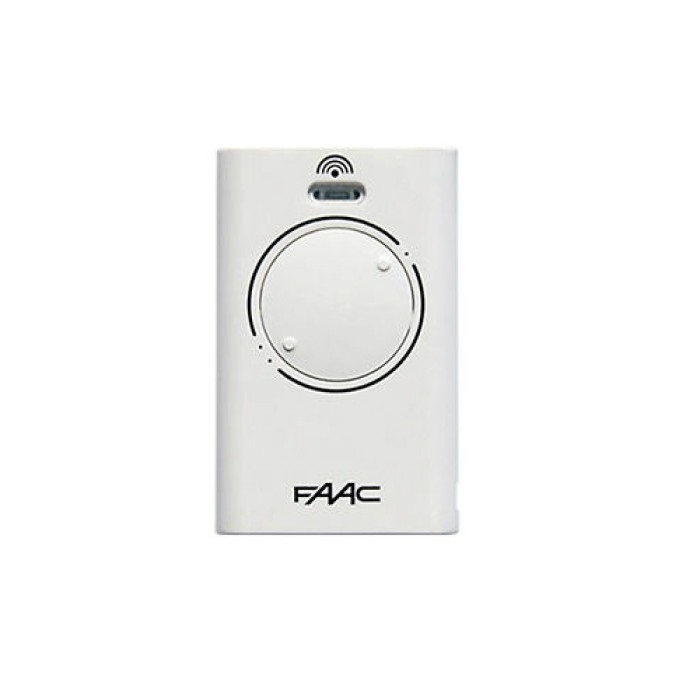

  • 2 x Two channel transmitter
  • 1 x Pair of photocells XP20B



























Technical
Battery Backup Option Yes
IP Rating 44
Max Gate Leaf Length 1.8m
Max Speed 1.33rpm
Motor Voltage 24Vdc

Write a review

Please login or register to review
  • : 21052
  • Brand: Faac
  • Product Code: 39024VKIT/39024VKITS
  • Dispatched: 1-2 Working Days

Available Options

. . . .
