Faac S800 CBAC 24Vdc underground kit for swing gates up to 2m

Faac S800 CBAC 24Vdc underground kit for swing gates up to 2m

Faac S800 hydraulic underground operator is suitable for residential and condominium swing gate s with leave length 2m max weight of 800Kg.

  • Suitable for continuous use
  • Integrated absolute magnetic encoder with bus technology
  • Integrated positive stops.
  • Hybrid technology
  • Service release device.
  • Easier handling and installation.

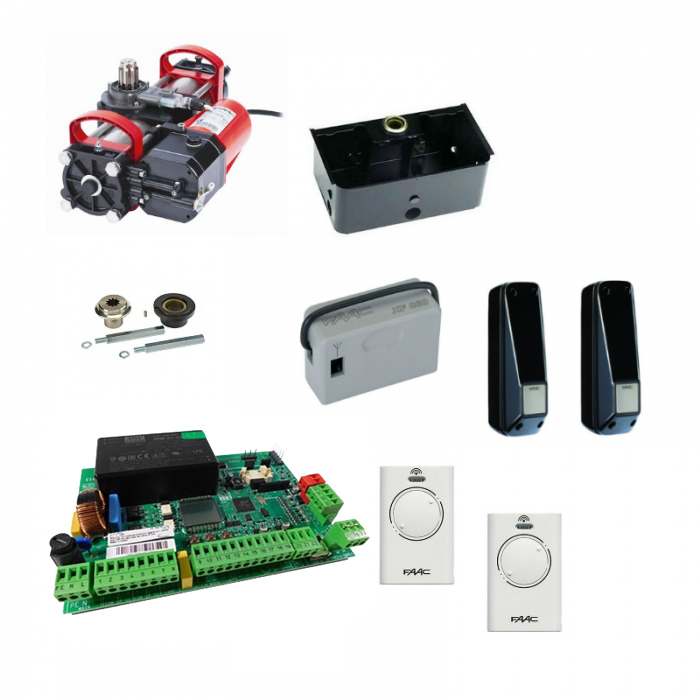

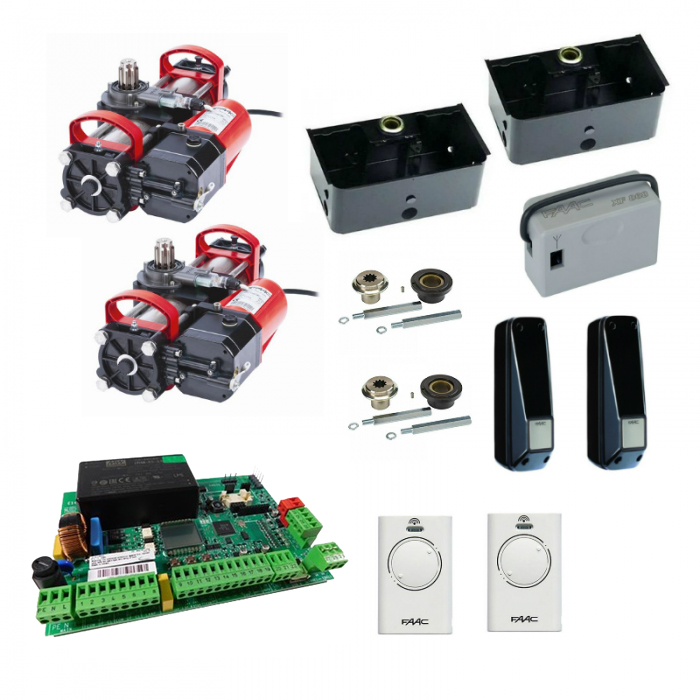

The Kit contains:

  • 1or 2 x 230Vdc hydraulic operators S800 CBAC 100 degree opening
  • 1 or 2 x Collar assembly for S800
  • 1 or 2 x Underground foundation boxes
  • 1 x E145S control board with housing
  • 1 x Pair of photocells XP20B
  • 1 x Receiver XF868 SLH
  • 2 x two-channel transmitters 868 SLH
Technical
IP Rating 67
Max Gate Leaf Length 2.0m
Max Gate Weight 800Kg
Motor Voltage 230Vac
Work Cycle Continuous

Write a review

Please login or register to review
  • : 10829
  • Brand: Faac
  • Product Code: S800CBAC230D/ S800CBAC230S
  • Dispatched: 1-2 Working Days

Available Options

Tags: S800CBAC230D/ S800CBAC230S

. . . .
